Reinforced Thermoplastic Pipe

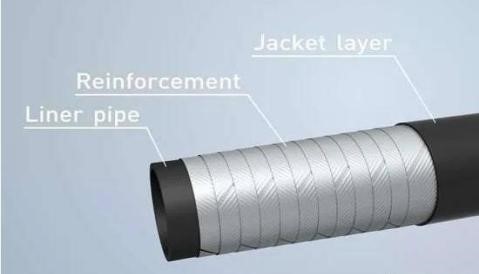

RTP pipe is a non-bonded flexible continuous composite pipe and the pipe body is composed of lining layer, reinforcement layer and outer protective layer.

The inner lining transmission layer and outer protective layer are usually extruded by polymer materials. The reinforcement layer is usually made of high strength fibers interlaced because the layers are independent.

Quality System

  • ISO 9001 certified by DNV
  • ISO 14000
  • ISO 18000
  • API Q1 Certificate

Main Products Of RTP

  • Flexible composite plastic high pressure water injection pipe.

  • Flexible composite plastic high-pressure pipe.

  • Flexible composite plastic pipeline.

  • Flexible composite plastic alcohol injection pipe.

Layers of RTP

  • Lining layer : mechanical or physical properties, heat resistance, transmission medium permeability, transmission medium compatibility.

  • Reinforcement layer : short-term/long-term bearing capacity, temperature bearing capacity.

  • Outer protective layer : ability to withstand installation load and service environment (such as Ultra Violet, abrasion etc.)

Specification Of RTP

  • Pipe Specification: DN40mm-200 mm

  • Pressure: 0.6MPA-32mpa

  • Medium Temperature: -40 to 110℃

  • Laying Method: buried or ground laying
